Choosing the right tungsten boat for vacuum evaporation requires a comprehensive consideration of several key factors, including the evaporation material, operating temperature, current capacity, size of the tungsten boat, purity level, and specific application requirements. A correctly chosen tungsten boat can ensure stable heating performance, uniform evaporation rates, longer service life, and higher quality coating results.
For industries such as vacuum coating, semiconductor manufacturing, optical films, electronic components, and decorative coating, partnering with an experienced tungsten boat supplier can ensure the tungsten boat meets specific process requirements. With professional manufacturing capabilities and strict quality control, GEMEI provides reliable tungsten and molybdenum material products for high-temperature applications.

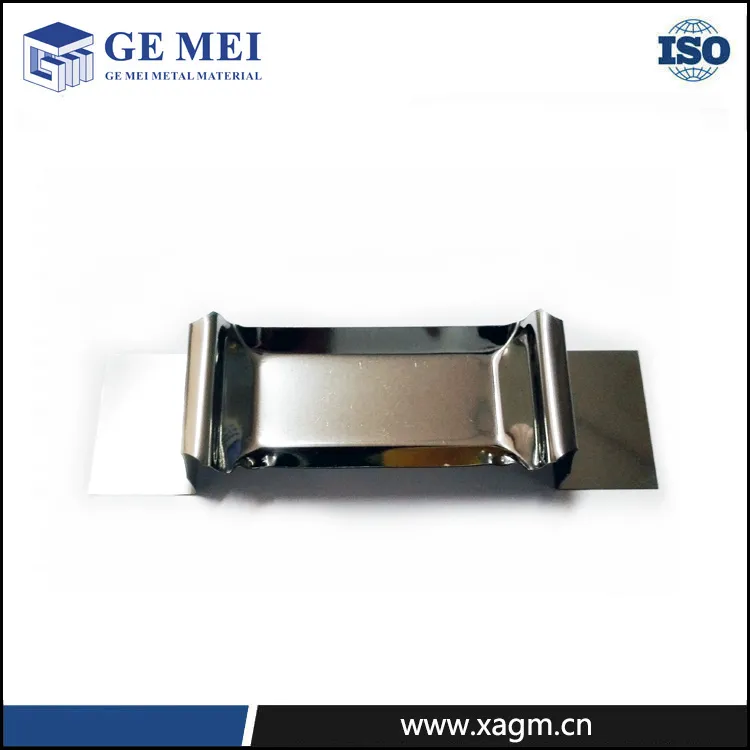

A tungsten boat is a high-temperature evaporation component made from tungsten sheets or tungsten-based materials, typically used as a resistance heating element in vacuum evaporation systems. By passing an electric current through the tungsten boat, heat is generated, causing the coating material placed within it to evaporate.
During vacuum evaporation, materials such as aluminum, silver, gold, copper, and other metals are placed inside the tungsten boat. In a high vacuum environment, the tungsten boat is heated to extremely high temperatures, causing the evaporation material to vaporize and deposit onto the target substrate surface to form a thin film.
The widespread application of tungsten boats is due to the unique properties of tungsten material:
Extremely high melting point (approximately 3420°C)
Excellent high-temperature strength
Good thermal shock resistance
Very low vapor pressure at high temperatures
Excellent chemical corrosion resistance
Stable performance in a vacuum environment
These characteristics make tungsten evaporation boats widely used in:
Optical coating equipment
Semiconductor manufacturing
Solar cell production
Vacuum metallization processes
Electronic component manufacturing
Laboratory evaporation systems
Choosing the right tungsten evaporation boat is crucial for different evaporation needs because the performance of the tungsten boat directly affects coating uniformity, production efficiency, and equipment operational stability.
The size of the tungsten boat should match the evaporation equipment, power capacity, and material load capacity. An unreasonable size choice may lead to unstable heating, uneven evaporation, or premature damage to the tungsten boat.
When selecting the size of the tungsten boat, the following factors should be considered:
Tungsten boats come in different lengths, widths, thicknesses, and structural forms. Common designs include:
Straight groove tungsten boat
Folded tungsten boat
Narrow groove tungsten boat
Wide groove tungsten boat
Larger tungsten boats can carry more evaporation material, suitable for long-term continuous production. However, oversized tungsten boats require higher current input; otherwise, they may not reach the required operating temperature.
The weight of the evaporation material placed in the tungsten boat affects heat distribution. The tungsten boat needs to have sufficient capacity while ensuring good contact between the material and the heating area.
Overloading may lead to:
Uneven temperature distribution
Material overflow
Increased thermal stress
Reduced service life
Before choosing a tungsten boat, users need to confirm:
Vacuum chamber design
Electrode spacing
Power supply specifications
Maximum operating current
Evaporation source structural configuration
Professional manufacturers can recommend suitable sizes of tungsten boat solutions based on actual equipment parameters.
As an experienced tungsten material manufacturer, GEMEI can provide customized tungsten boats of different sizes and specifications according to different vacuum evaporation application needs.
The performance of a tungsten boat depends not only on size but also on material quality, manufacturing processes, and operating conditions.
High-purity tungsten materials can provide better stability in high-temperature operating environments. Impurities may affect:
Heating efficiency
Mechanical strength
Vacuum cleanliness
Film quality
For high-precision applications such as semiconductor manufacturing and optical coating, high-purity tungsten material is the better choice.
The production process directly affects the density, surface quality, and service life of the tungsten boat.
High-quality tungsten boats typically go through the following processes:
Raw material selection
Pressing or forming
High-temperature sintering
Precision machining
Surface inspection
Advanced manufacturing techniques can improve the anti-deformation and anti-cracking performance of tungsten boats in repeated heating cycles.
Different evaporation materials require different evaporation temperatures, so the tungsten boat must be able to withstand continuous thermal cycles while avoiding significant deformation.
When selecting a tungsten boat, engineers need to evaluate:
Required evaporation temperature
Heating rate
Operating current
Usage frequency
Cooling conditions
A well-matched tungsten boat can enhance energy utilization efficiency and reduce replacement frequency.
Different evaporation materials have different melting points and thermal characteristics, so it is necessary to select the appropriate tungsten boat design based on material properties.
| Evaporation Material | Recommended Considerations |
|---|---|
| Aluminum | Requires good electrical conductivity and stable heating capability |
| Gold | Requires excellent surface quality and low contamination control capability |
| Silver | Requires high purity and good thermal stability |
| Copper | Requires strong resistance to high-temperature stress |
| Metal Alloys | Customized design based on melting characteristics |
For large-scale industrial coating production, manufacturers typically require tungsten boats with stable dimensions, consistent performance, and reliable batch quality.
Choosing a professional tungsten evaporation boat manufacturer can ensure the product better matches the vacuum coating system and maintains stable production quality.
Xi'an GEMEI Metal Materials Co., Ltd. has been focusing on the research and production of tungsten, molybdenum, and their alloy materials since 1995. The company has a registered capital of 20 million RMB, covering an area of about 30,000 square meters, with nearly 350 employees, among whom professional technical staff account for about 20% of the total employees, responsible for product development, production process optimization, and quality control.
With comprehensive tungsten and molybdenum processing equipment, GEMEI can provide one-stop customized solutions from raw material processing to finished product manufacturing.
Choosing a reliable supplier is crucial for ensuring product quality, delivery stability, and technical support.
When evaluating tungsten boat suppliers, focus on the following aspects:
Suppliers with years of experience in tungsten material processing can better control:
Material purity
Dimensional accuracy
Product consistency
Quality inspection
Professional manufacturers should have complete production equipment, including:
Powder metallurgy equipment
Sintering furnace
Rolling equipment
Forging equipment
Precision machining systems
Reliable tungsten product manufacturers should establish a strict quality management system to ensure each batch of products meets customer requirements.
GEMEI has passed the ISO9001 quality system certification and has established a professional tungsten and molybdenum material R&D and production team. The company's products have been exported to the United States, Japan, South Korea, Singapore, and other countries and regions.
Different vacuum evaporation equipment requires different specifications of tungsten boats. Excellent suppliers should be able to provide:
Customized sizes
Special structural designs
Different purity grade selections
Technical consulting services
Customers who need customized vacuum evaporation solutions can obtain professional support through GEMEI's "Contact Us" page.
Choosing the right vacuum evaporation tungsten boat requires comprehensive consideration of size, material compatibility, purity, manufacturing quality, and actual operating conditions. The right tungsten boat can improve evaporation stability, coating uniformity, and equipment operating efficiency, while reducing maintenance costs.
As an experienced tungsten and molybdenum material manufacturer, Xi'an GEMEI Metal Materials Co., Ltd. relies on advanced processing technology, a strict quality control system, and customized production capabilities to provide customers with high-quality tungsten evaporation products.
Whether it is standard specification products or special application solutions, choosing a trustworthy tungsten boat supplier can help optimize the vacuum evaporation process and achieve more stable and efficient production results.
